Technical Specification for the Swift Voyager Motorhomes

Back to the Swift Voyager

Layouts Voyager 475 Voyager 485 Voyager 494 Voyager 505 Voyager 510 Voyager 540 Voyager 564 Voyager 574 Voyager 584 Voyager 594

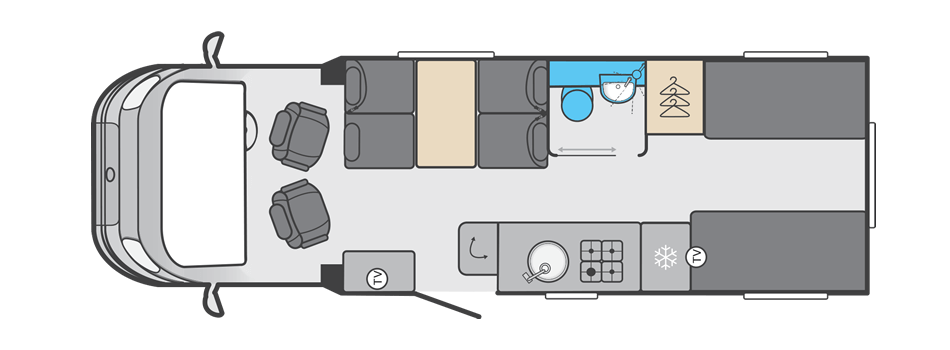

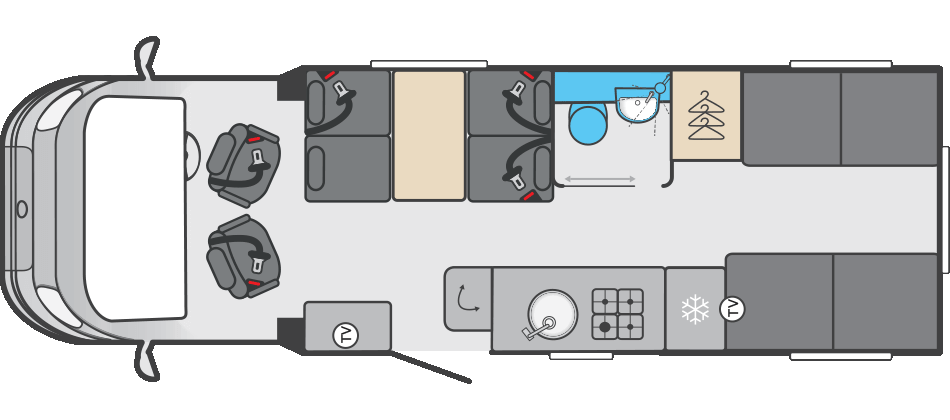

Voyager 475 floorplan Day

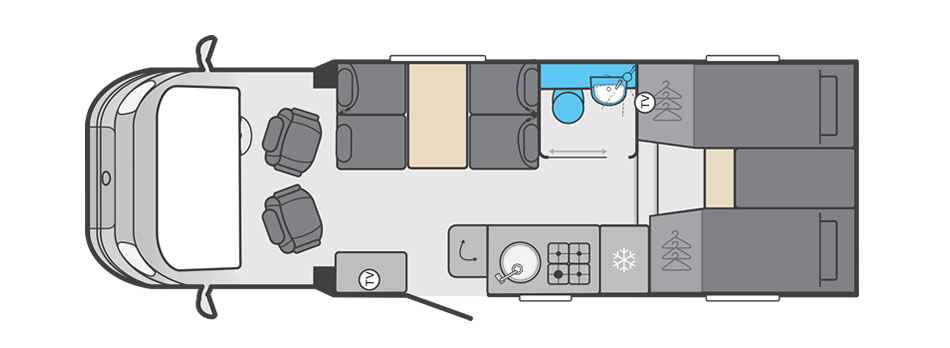

Voyager 475 floorplan Night

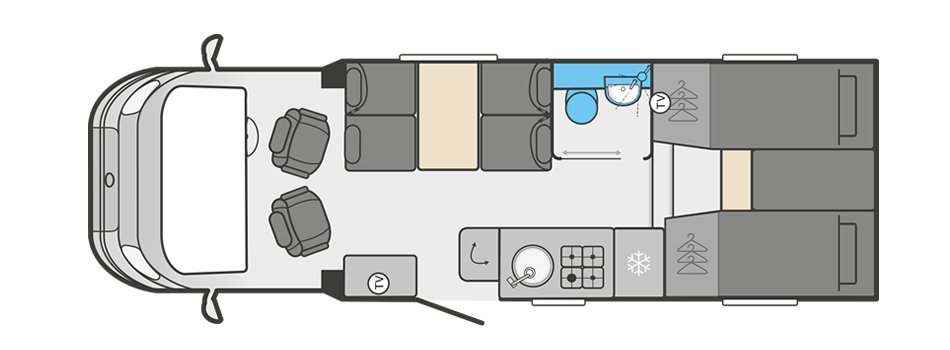

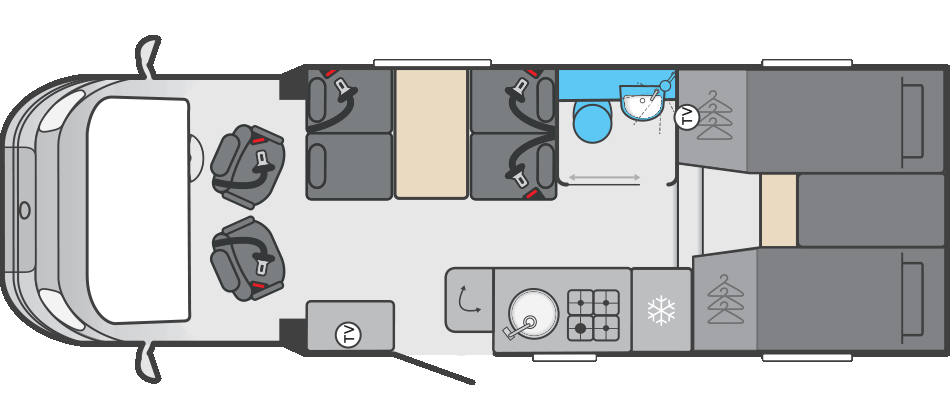

Voyager 485 floorplan Day

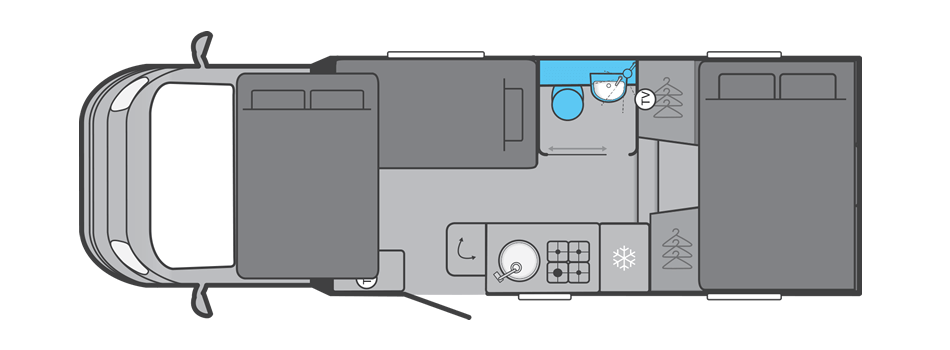

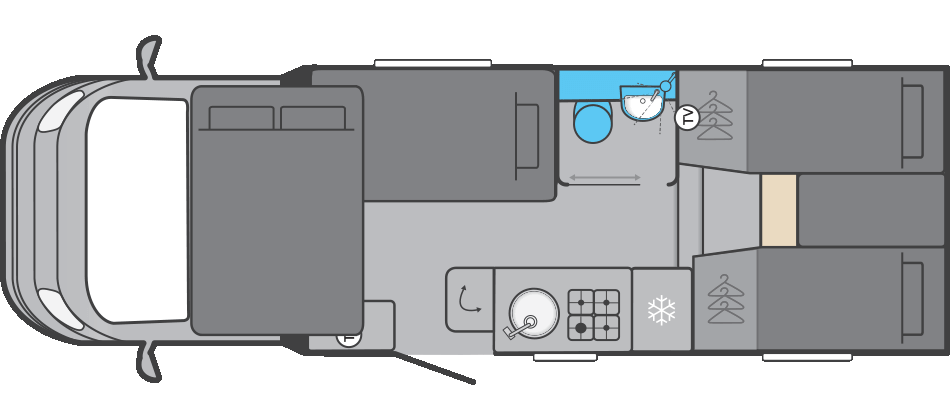

Voyager 485 floorplan Night
Voyager 485 floorplan Night (alt)

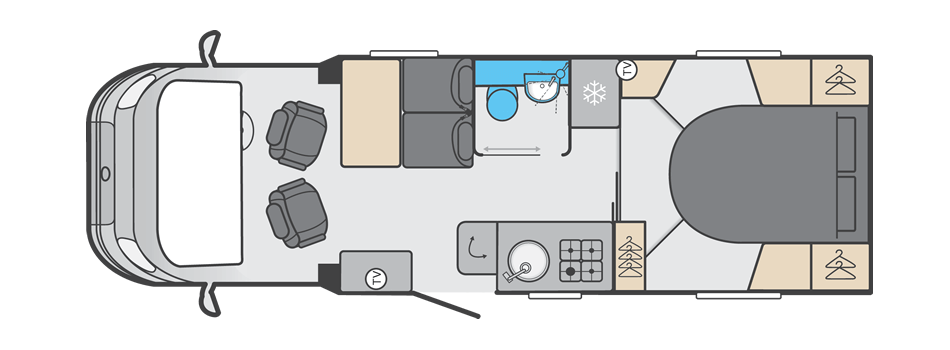

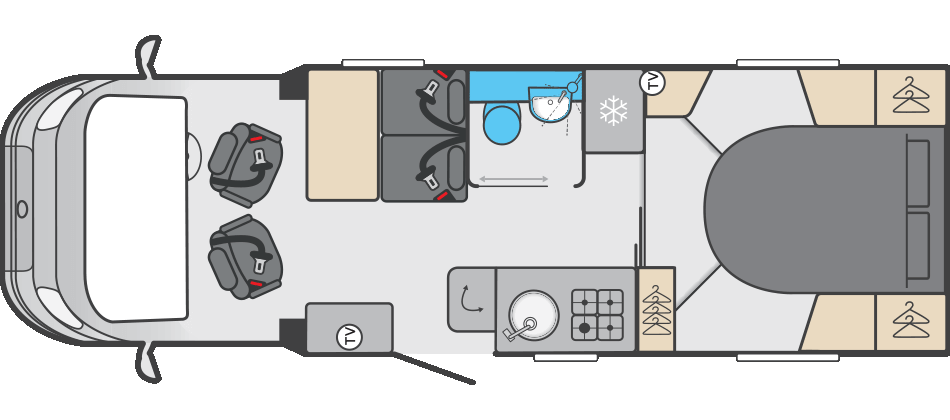

Voyager 494 floorplan Day

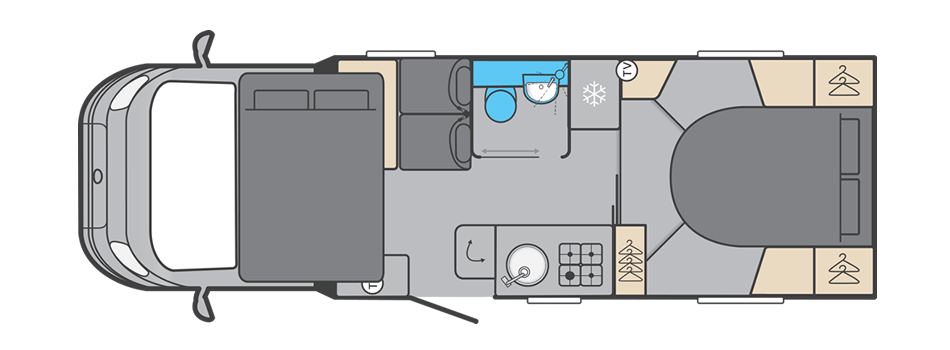

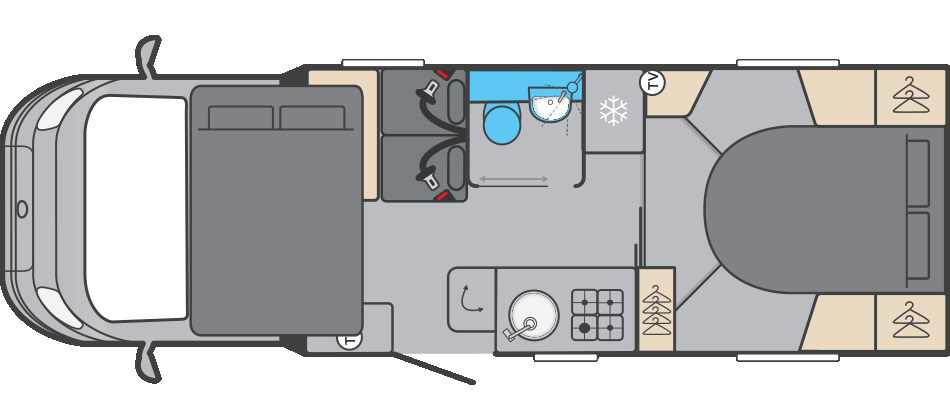

Voyager 494 floorplan Night

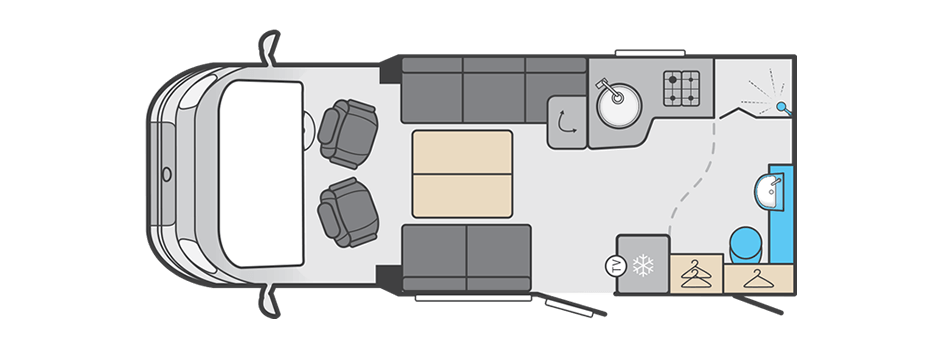

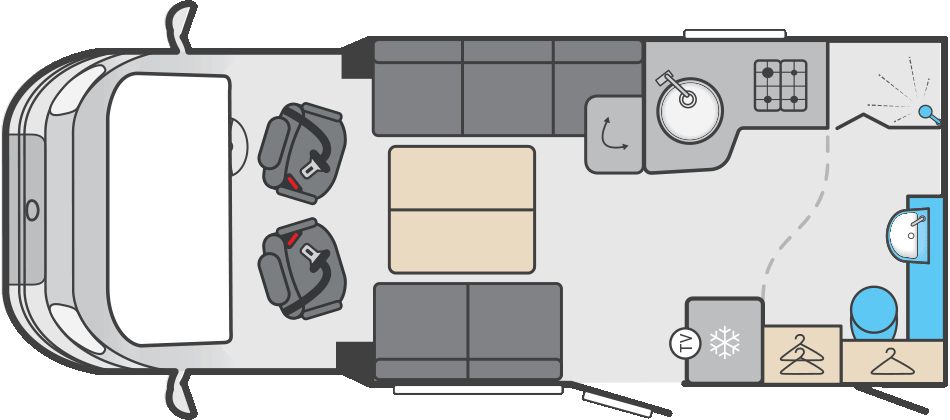

Voyager 505 floorplan Day

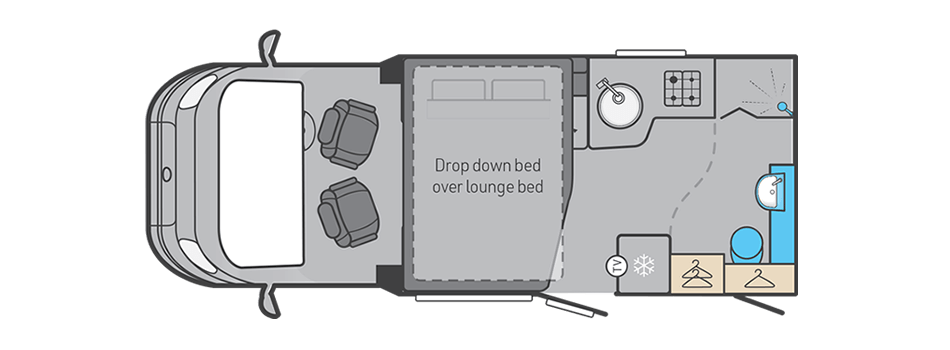

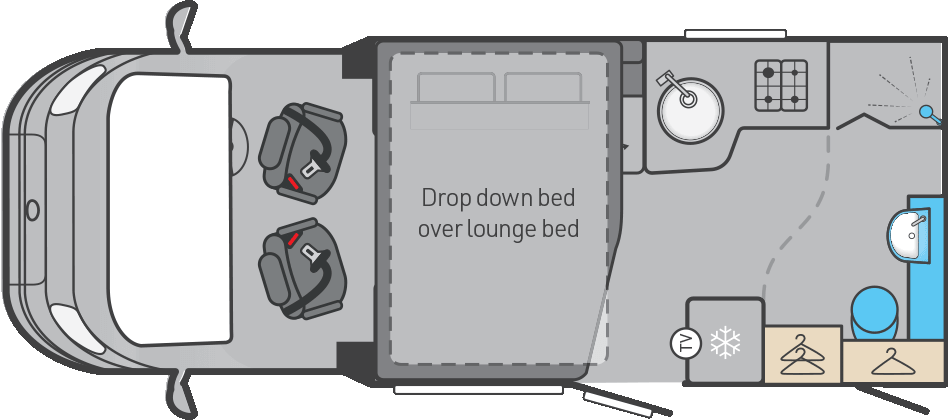

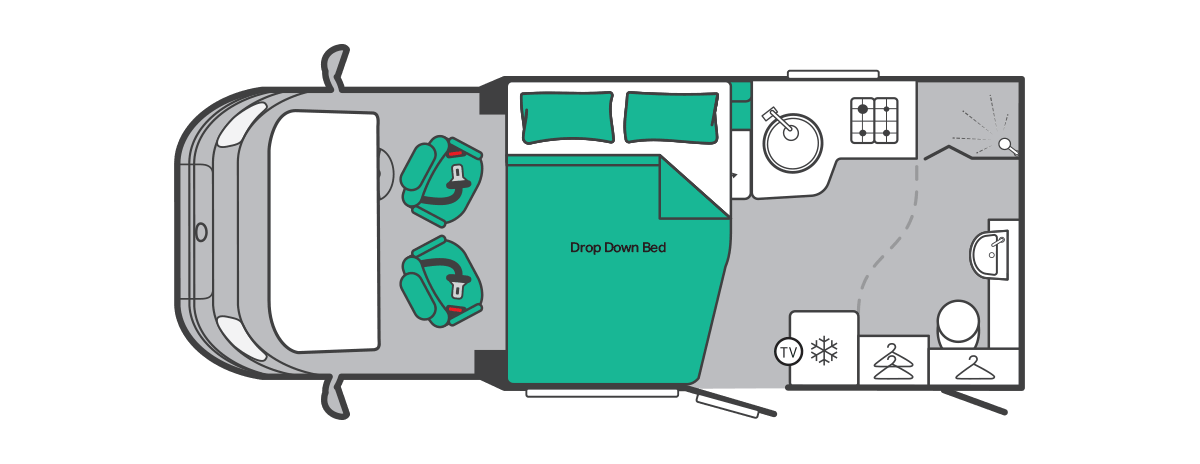

Voyager 505 floorplan Night

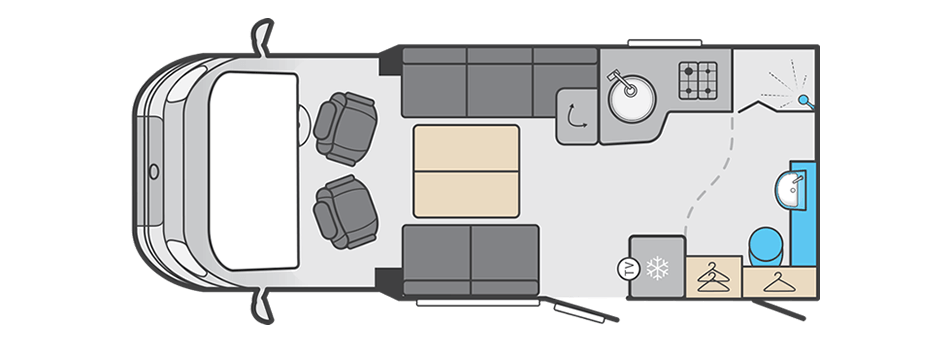

Voyager 510 floorplan Day lounge

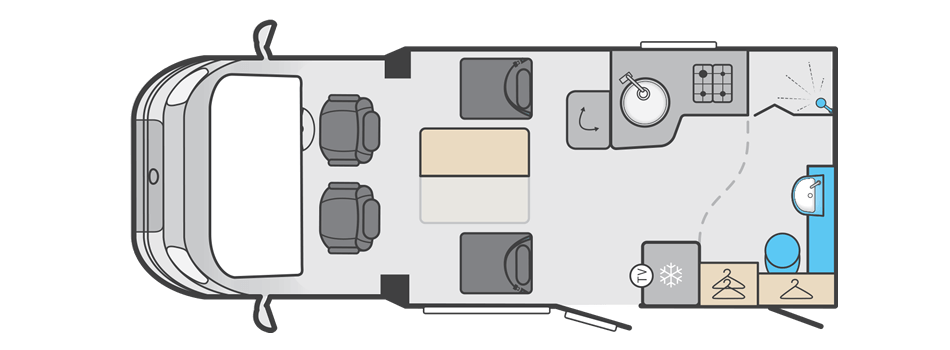

Voyager 510 floorplan Day travelling

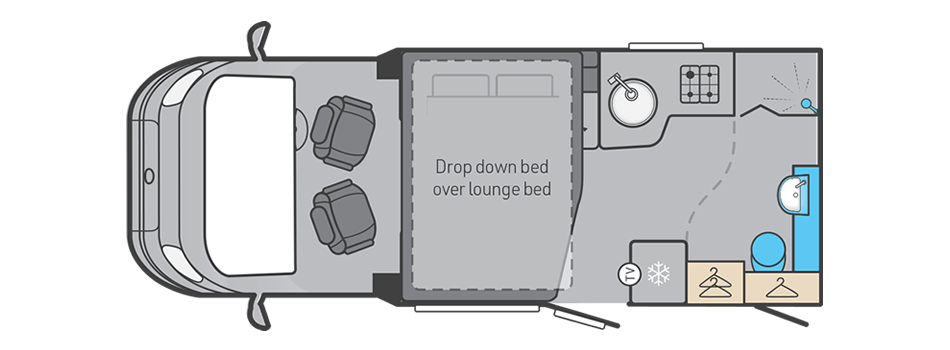

Voyager 510 floorplan Night

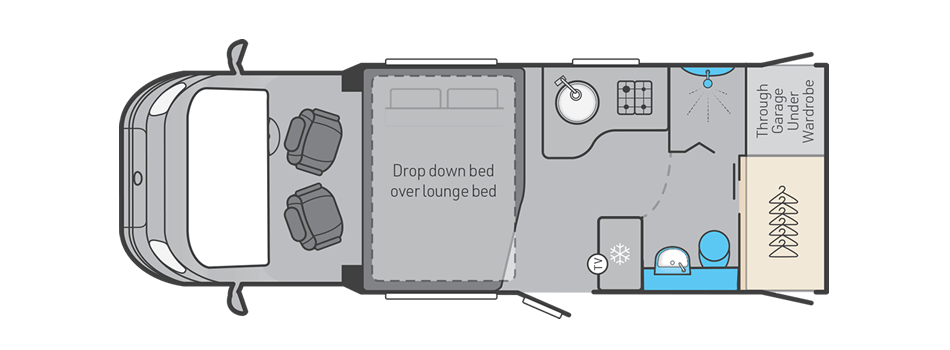

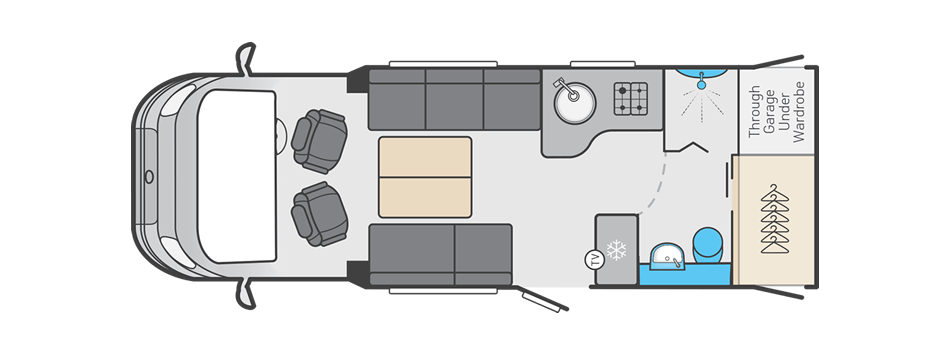

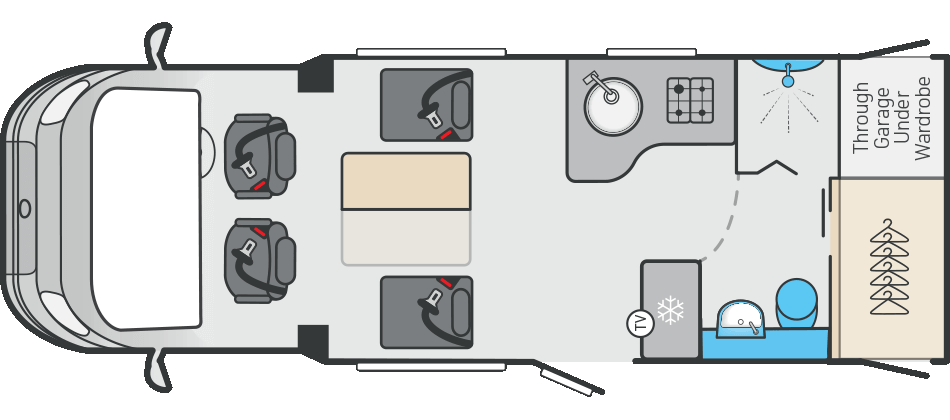

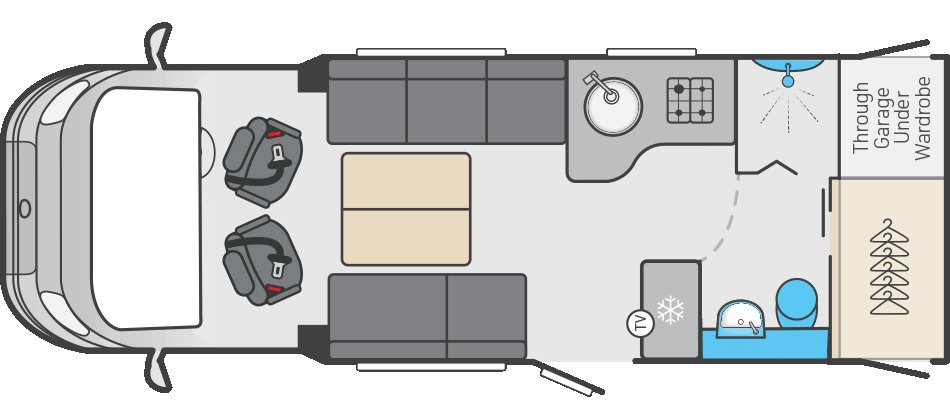

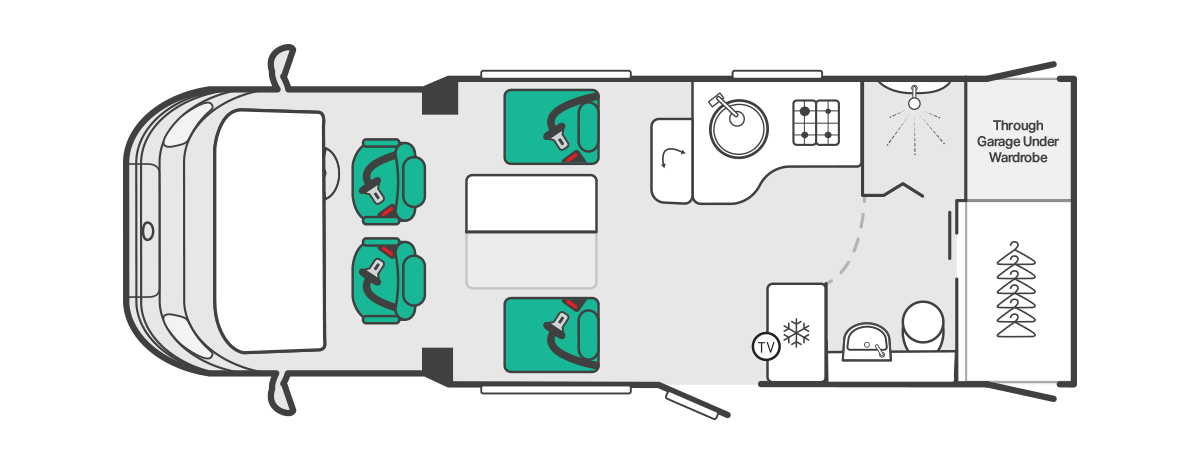

Voyager 540 floorplan Day

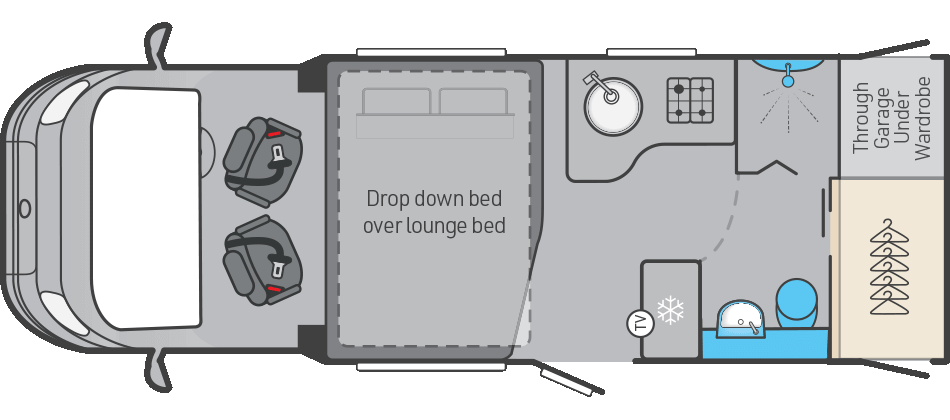

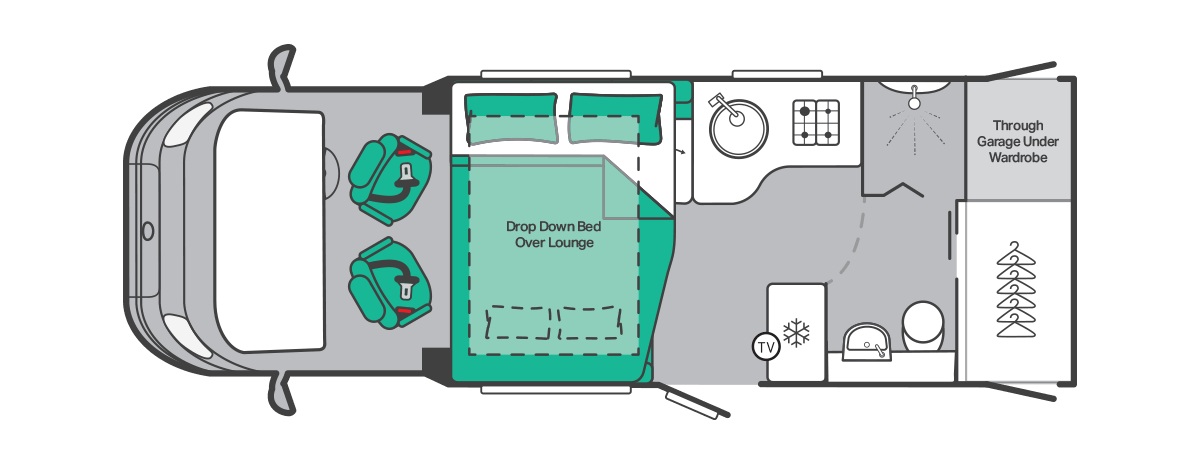

Voyager 540 floorplan Night

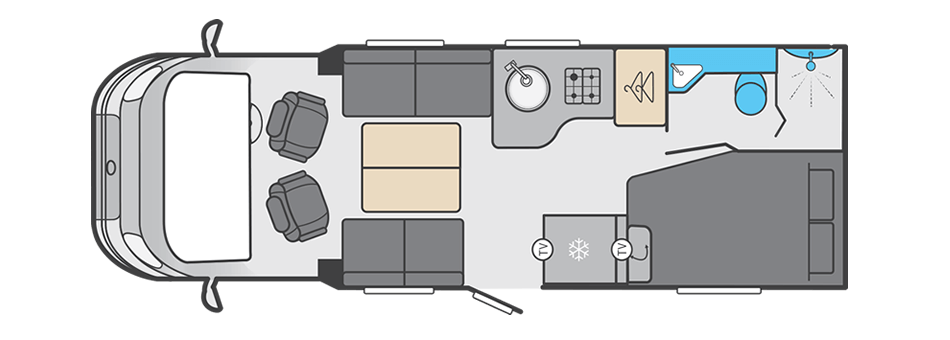

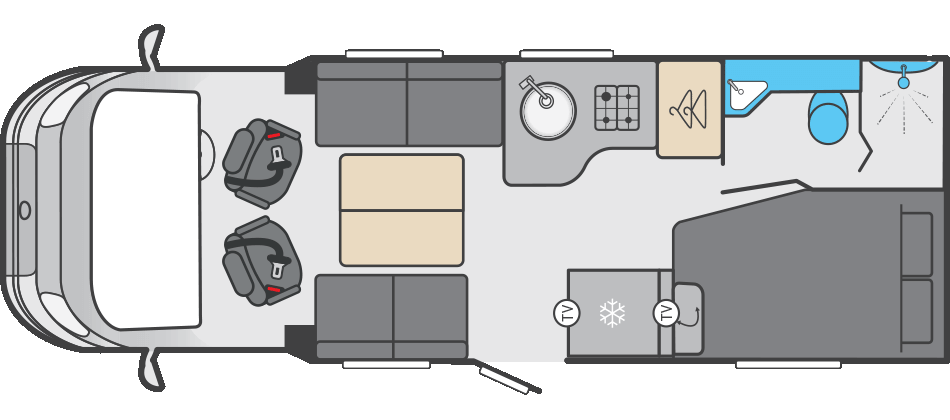

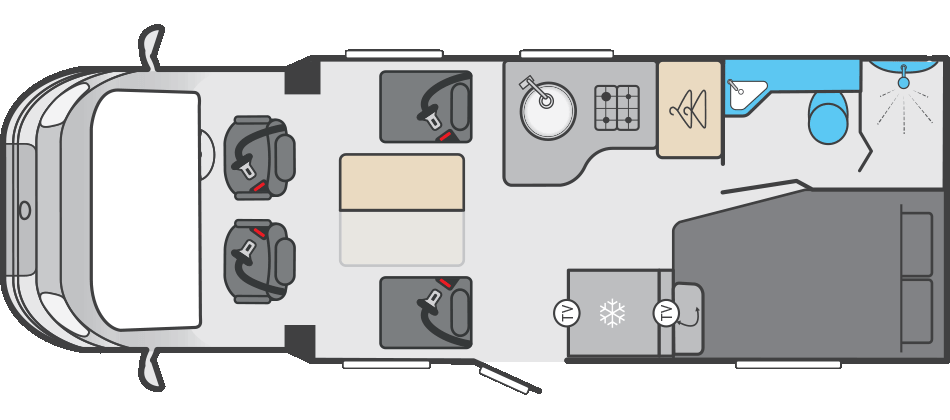

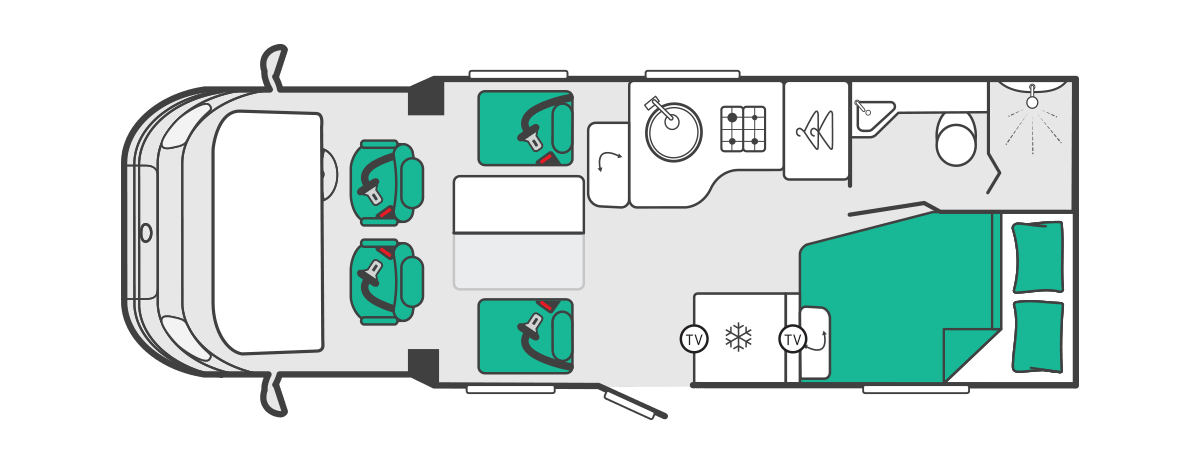

Voyager 564 floorplan Day

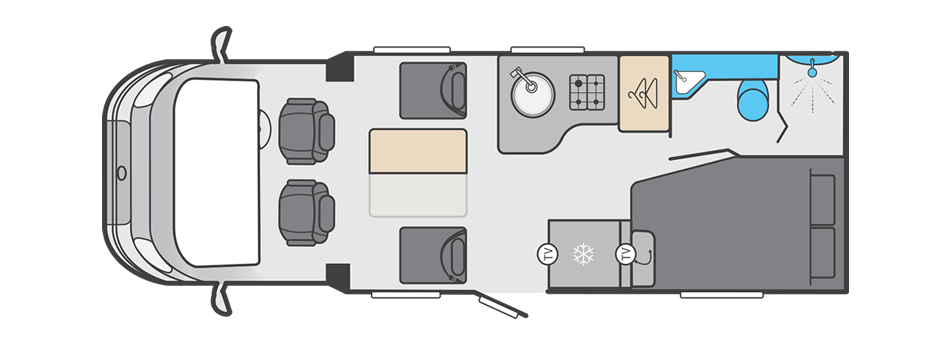

Voyager 564 floorplan Day Opt

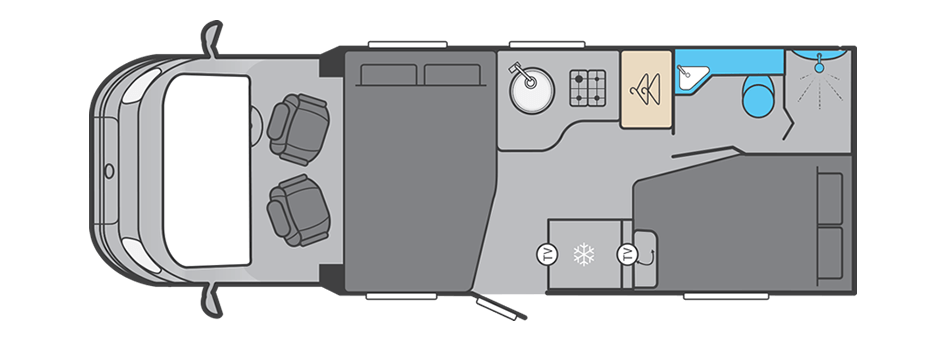

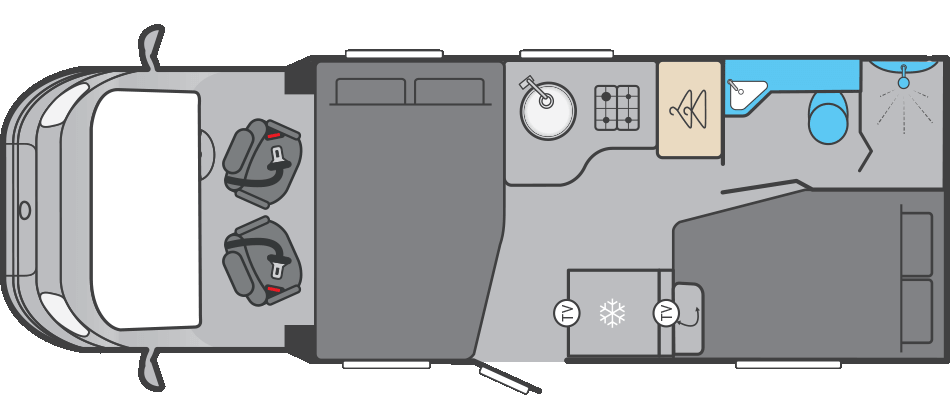

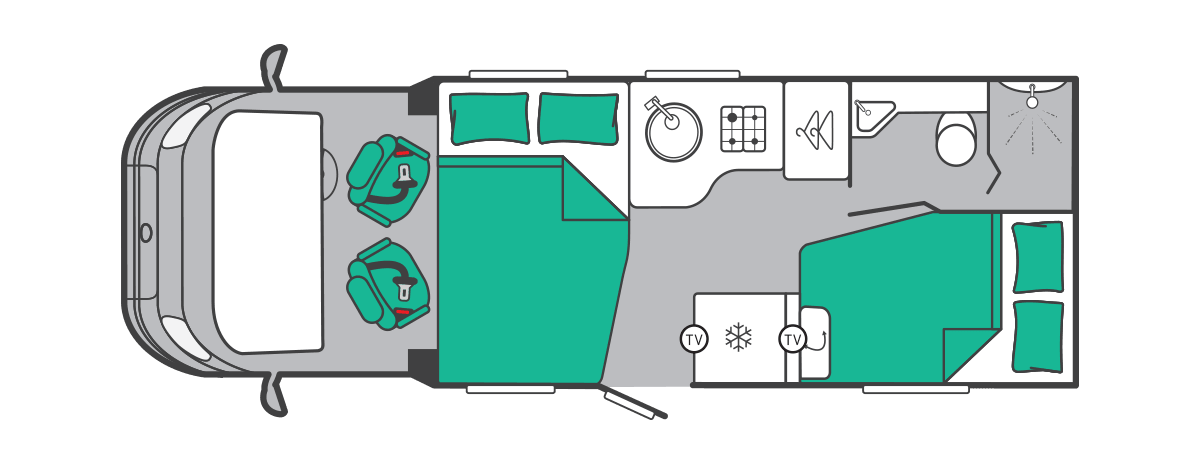

Voyager 564 floorplan Night

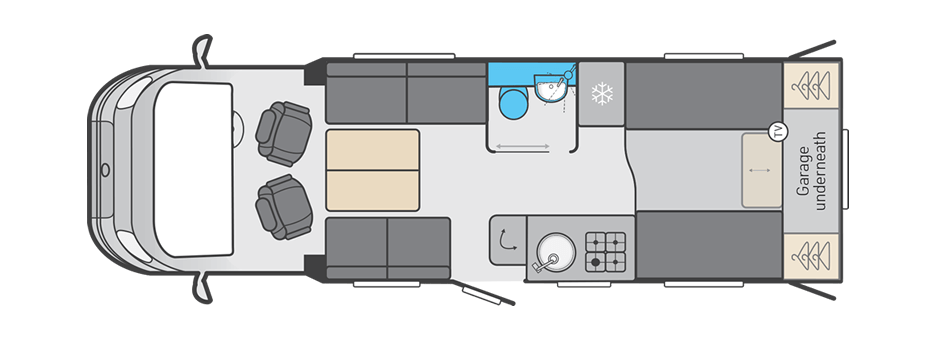

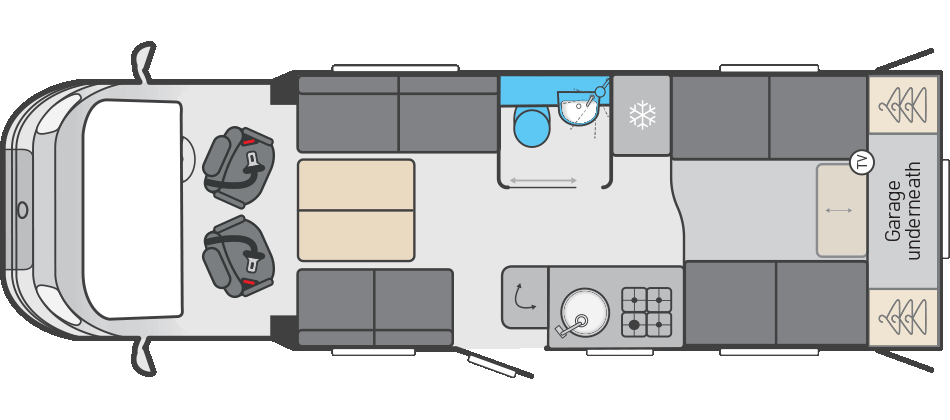

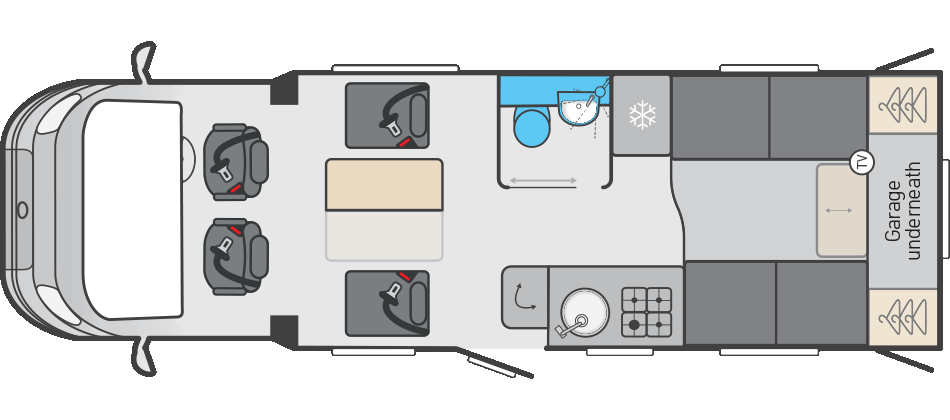

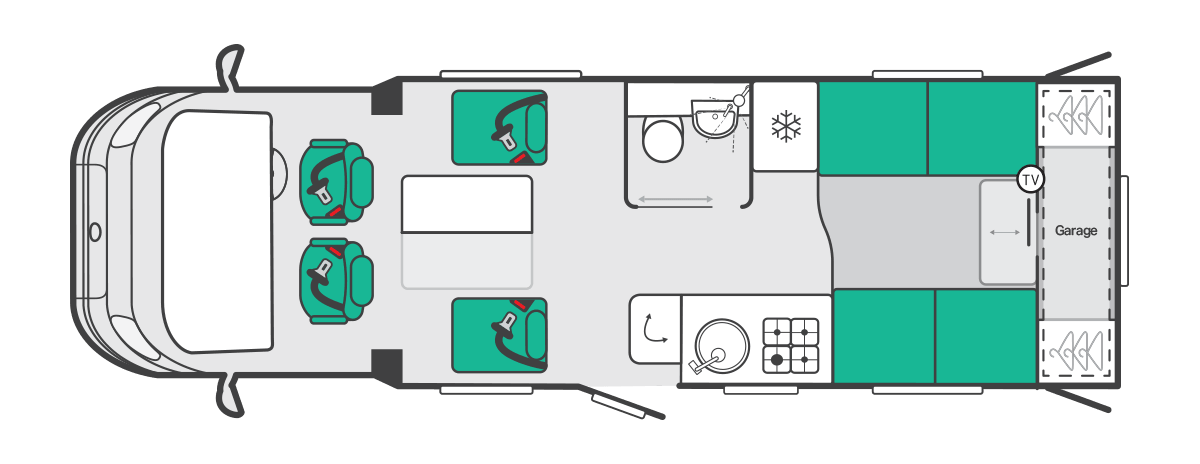

Voyager 574 floorplan Day

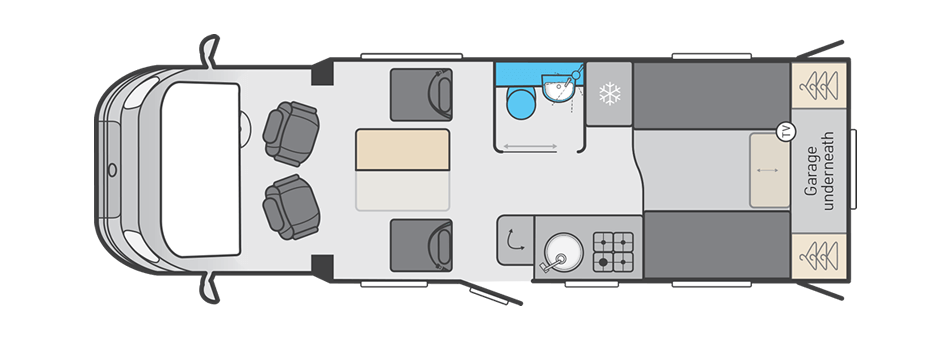

Voyager 574 floorplan Day Opt

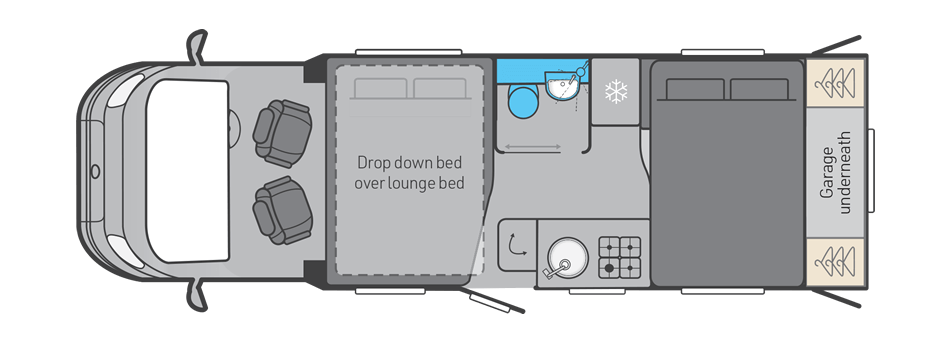

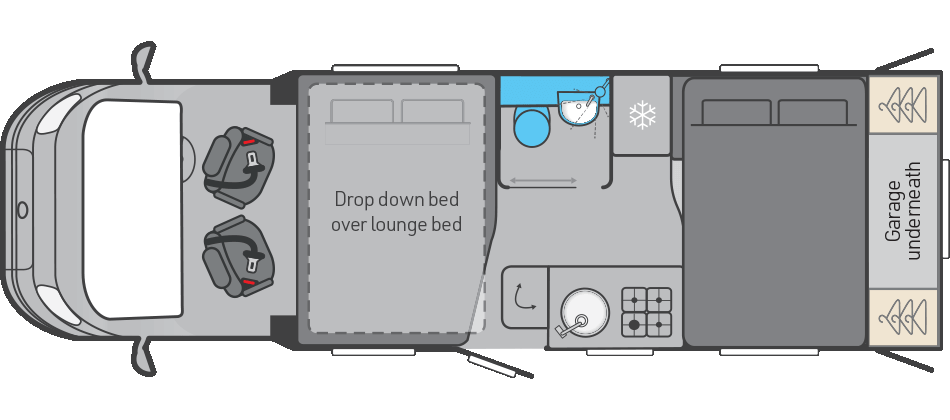

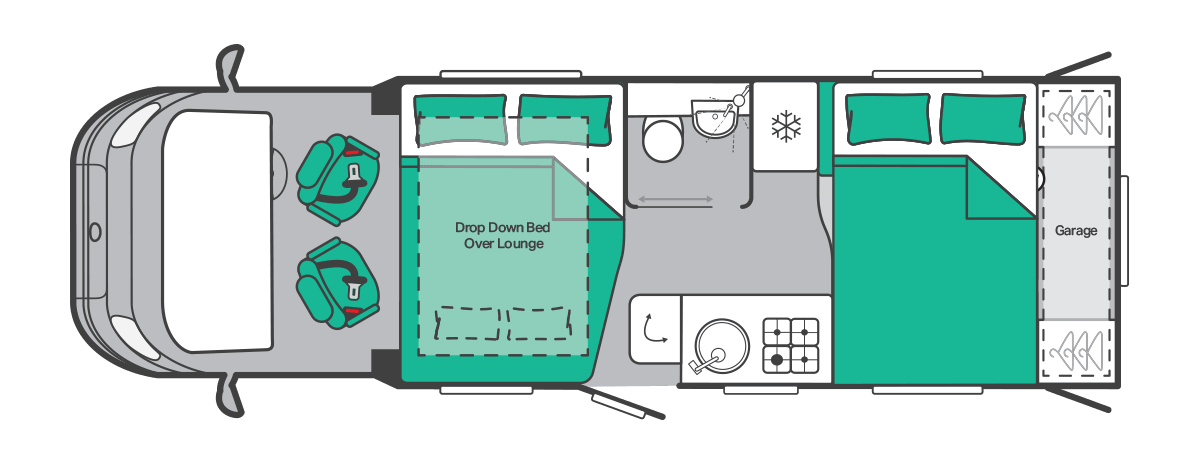

Voyager 574 floorplan Night

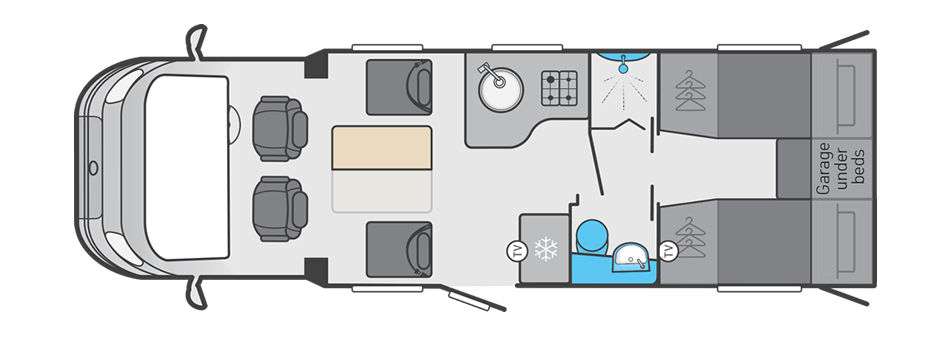

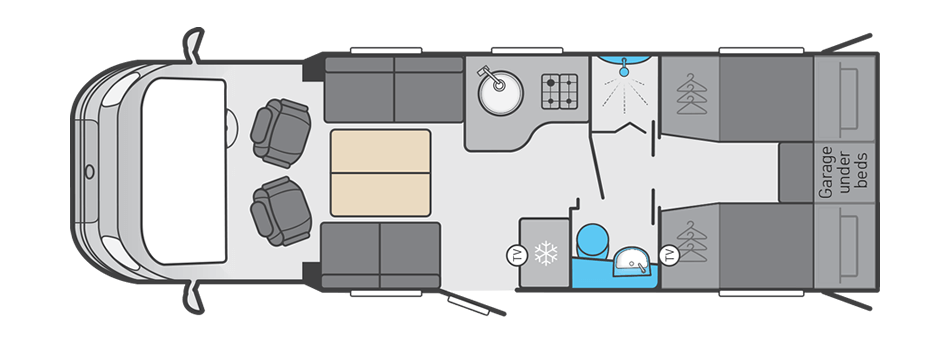

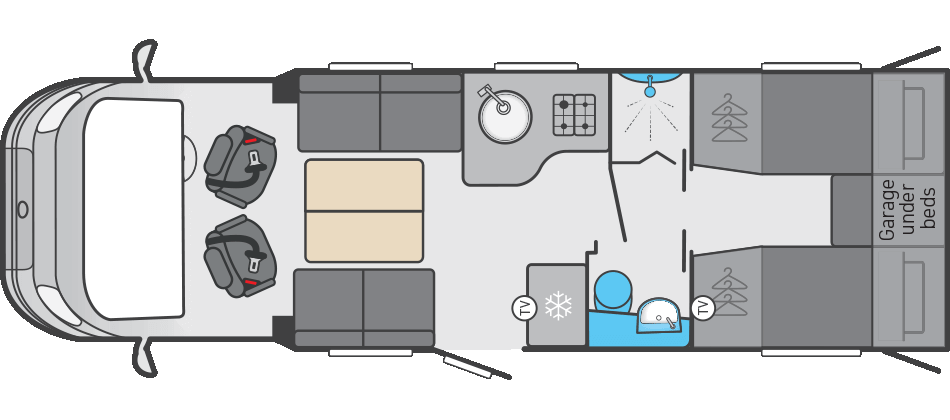

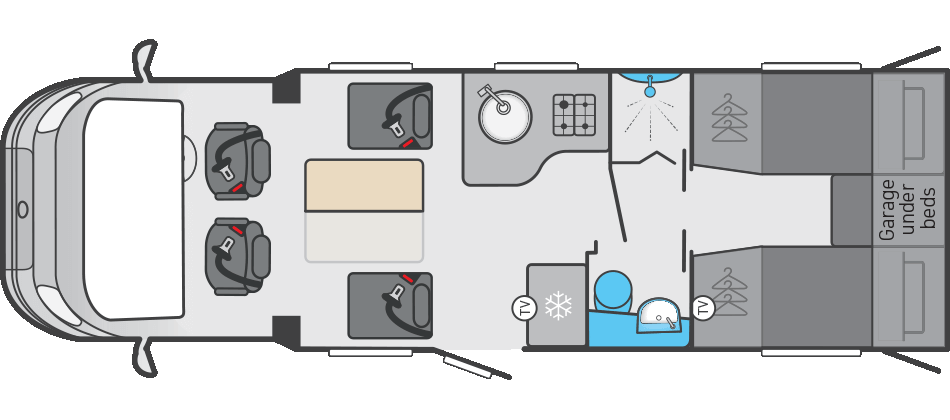

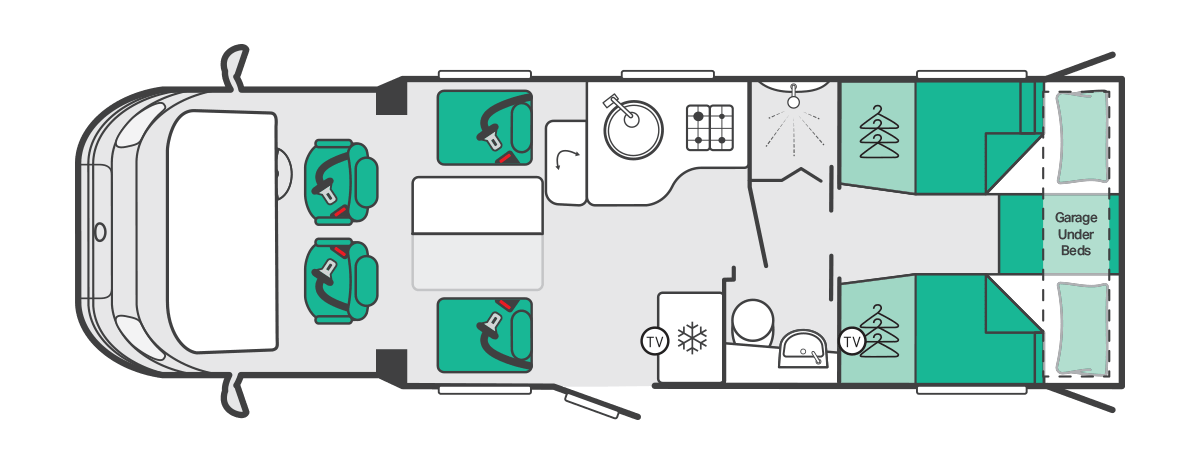

Voyager 584 floorplan Day (travel)

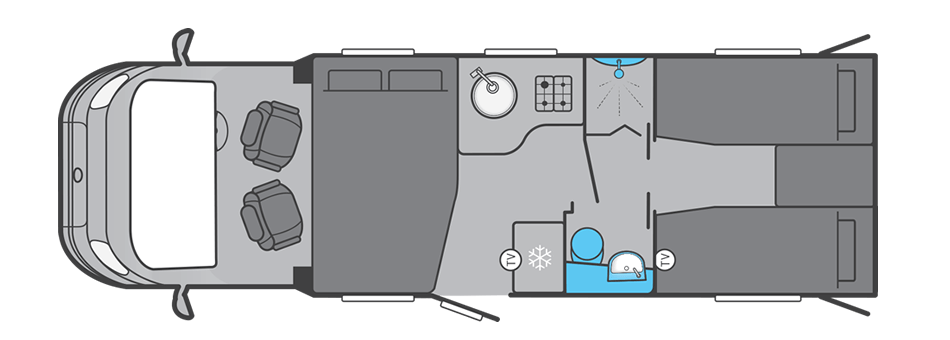

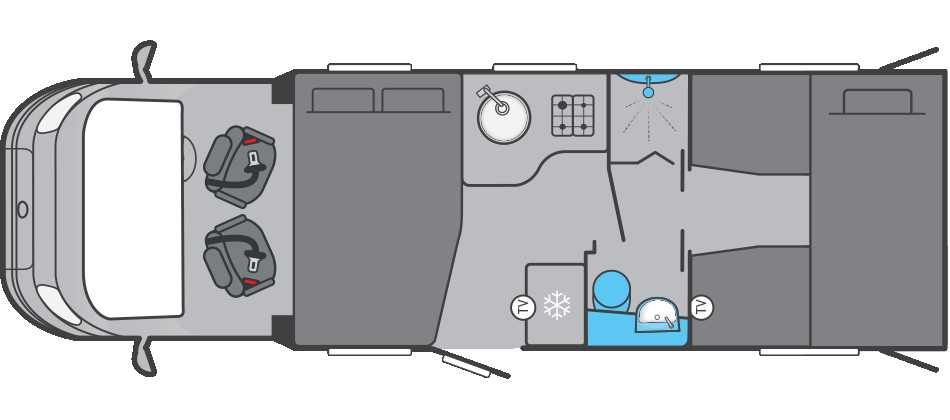

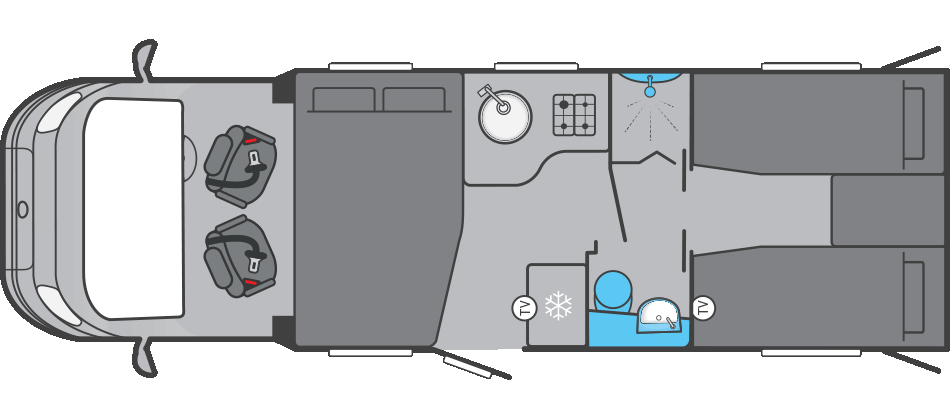

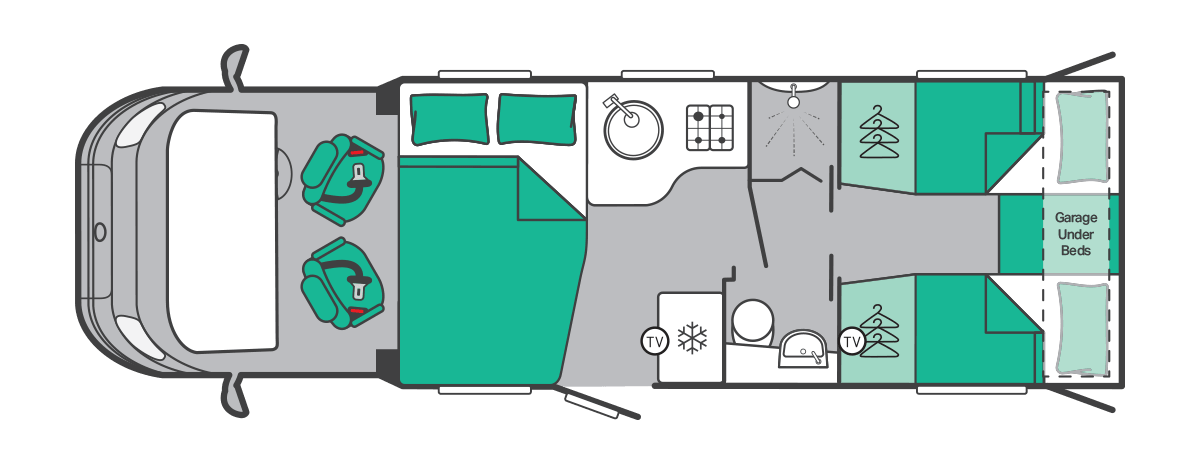

Voyager 584 floorplan Night

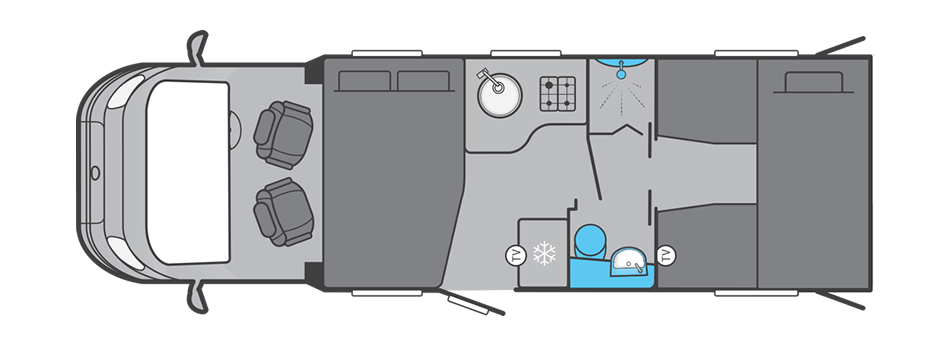

Voyager 584 floorplan Night Opt

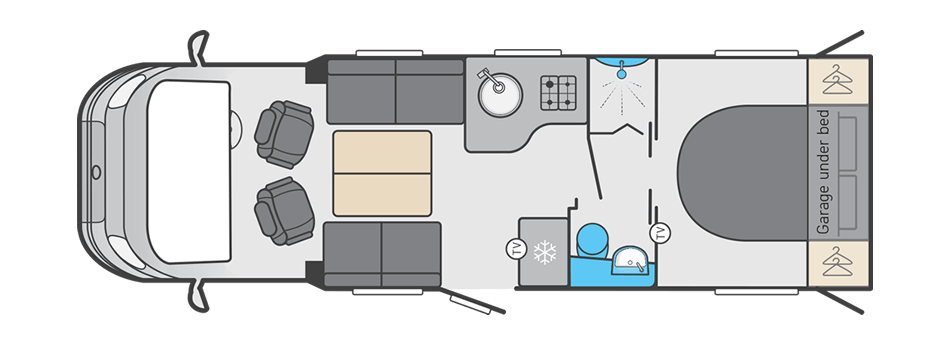

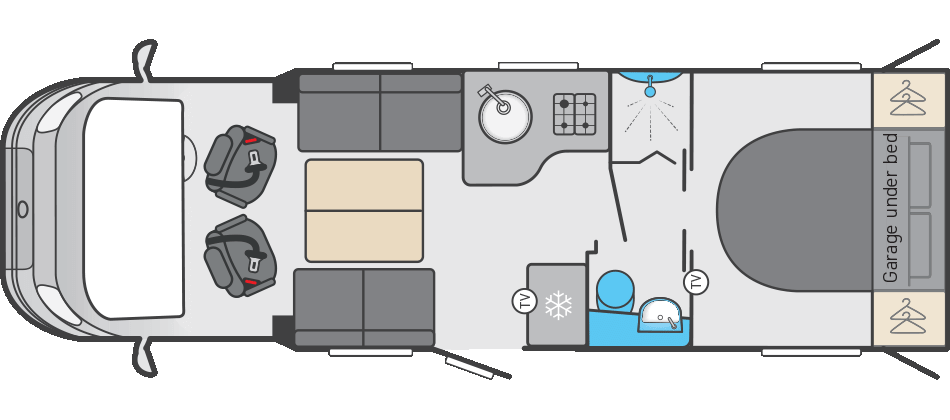

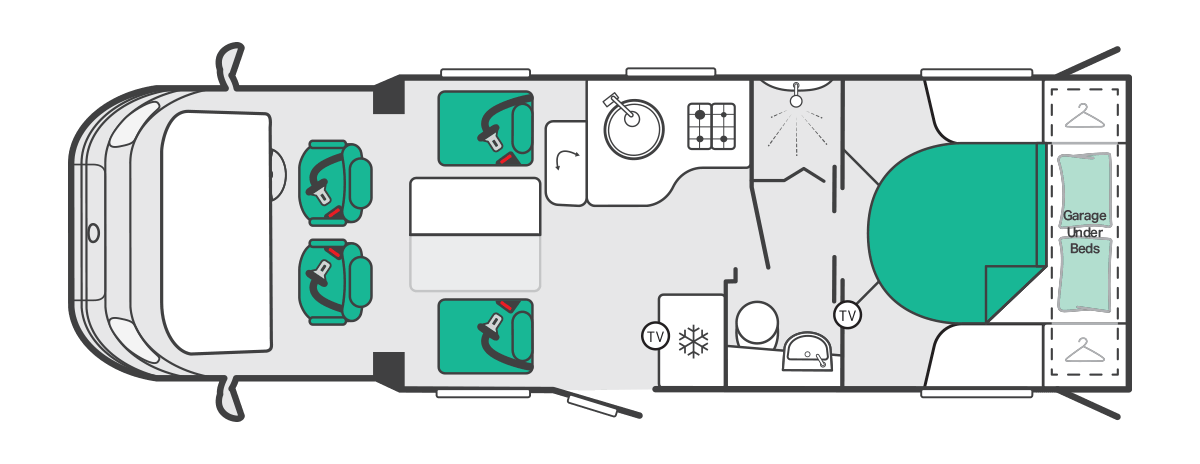

Voyager 594 floorplan Day

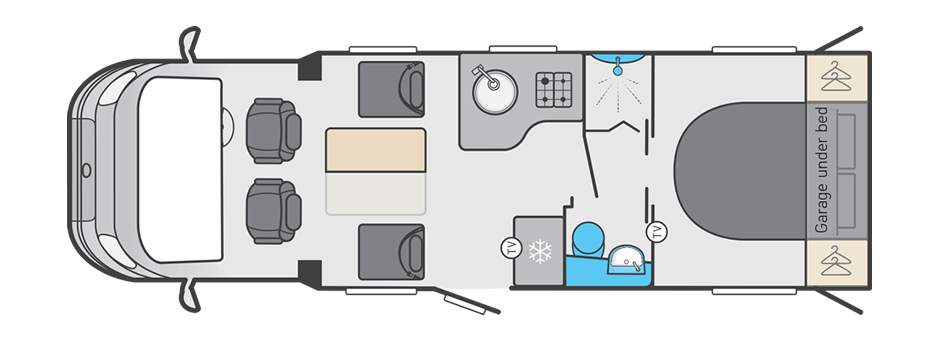

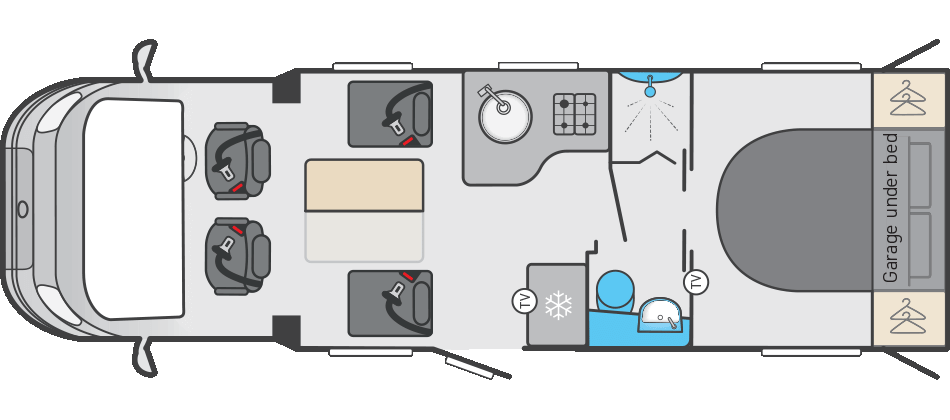

Voyager 594 floorplan Day Opt

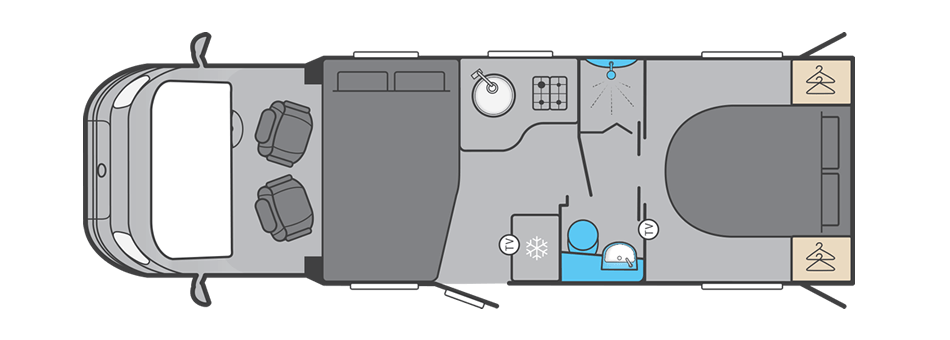

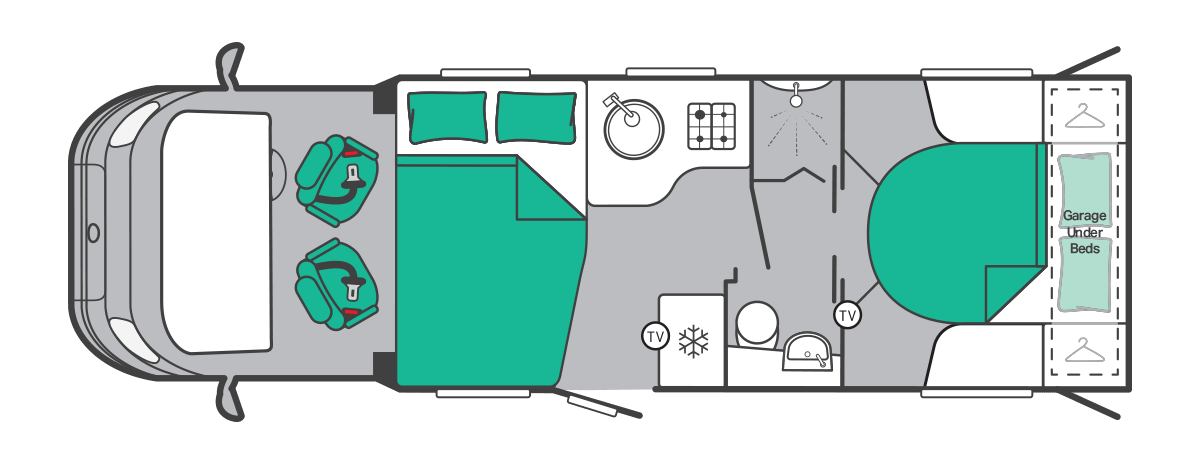

Voyager 594 floorplan Night
Specification Voyager 475 Voyager 485 Voyager 494 Voyager 505 Voyager 510 Voyager 540 Voyager 564 Voyager 574 Voyager 584 Voyager 594
Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard
Berths 5 5 4 4 4 4 4 6 4 4
Overall Width # 2.37 2.37 2.37 2.37 2.37 2.37 2.37 2.37 2.37 2.37
Overall Length # 7.54 7.54 7.54 6.19 6.19 7.01 7.22 7.73 7.85 7.85
Bed Sizes Voyager 475 Voyager 485 Voyager 494 Voyager 505 Voyager 510 Voyager 540 Voyager 564 Voyager 574 Voyager 584 Voyager 594
Front Offside Single 193cm x 100cm / 6’4” x 3’3” 193cm x 100cm / 6’4” x 3’3” - - - - - - - -
Rear Double 200cm x 147cm / 6’7” x 4’10” 206cm x 115cm / 6’9” x 3’9” 183cm x 143cm / 6’0” x 4’8” - - - 188cm x 129cm | 6’2” x 4’3” est 202cm x 131cm / 6'8" x 4'4" 206cm x 115cm | 6’9” x 3’9” 183cm x 143cm | 6’0” x 4’8”
Luton bed 190cm x 133cm / 6’3” x 4’4” 190cm x 133cm / 6’3” x 4’4” 190cm x 133cm / 6’3” x 4’4” - - - - - - -
Rear Nearside Single - 191cm x 78cm / 6’3” x 2’7” - - - - - - 195cm x 78cm | 6’5” x 2’7” -
Rear Offside Single - 191cm x 78cm / 6’3” x 2’7” - - - - - - 195cm x 78cm | 6’5” x 2’7” -
Front Double - - - 194cm x 165cm / 114cm | 6’4” x 5’10”/3’9” 194cm x 165cm / 114cm | 6’4” x 5’10”/3’9” 194cm x 165cm / 114cm | 6’4” x 5’10”/3’9” 194cm x 132cm/105cm | 6’4” x 4’4” / 3’5” est 194cm x 165cm/114cm / 6'4" x 5'10"/3'9" 194cm x 132cm/105cm | 6’4” x 4’4”/3’5” 194cm x 132cm/105cm | 6’4” x 4’4” / 3’5”
Drop Down Bed - - - 189cm x 150cm est | 6’2” x 4’11” 189cm x 150cm est | 6’2” x 4’11” 189cm x 150cm | 6' 2" x 4' 11" - 189cm x 150cm / 6'2" x 4'11" - -

The Maximum User Payload includes

  1. the conventional load (this is the allowance for passengers)
  2. essential habitation equipment (items and fluids required for safe and proper functioning of habitation equipment)
  3. optional equipment (items available from the manufacturer over and above the standard specification)
  4. personal effects (those items not covered by the above)

The Mass in Running Order is the mass of the unladen vehicle including a 75kg allowance for the driver plus engine coolants and 90% of the fuel tank capacity and 1 x 6kg Calor Lite LPG cylinder.

The MRO is calculated with the fresh water tank empty. If you travel with water in the fresh water tank then the payload will reduce accordingly.

Please take care to ensure that you have allowed for the masses of all items you intend to carry in the motor caravan, e.g. passengers, optional equipment, essential habitation equipment and personal effects, such as clothing, food, pets, bicycles, sailboards, sports equipment etc.

Warning - under no circumstances should the maximum technical permissible laden mass of this motor caravan be exceeded.

Est. Estimated

* With this vehicle configuration it will be necessary to reduce the payload carried inside the van when towing to ensure that the MTPLM and maximum axle loads are not exceeded.

# Please note that the additional weight of the tow bar and trailer nose weight increases the rear axle loading of the motorhome so care should be taken that the rear axle load is not exceeded when towing. To ensure adequate road holding, the load on the front axle, under all conditions, must not be less than 40% or more than 70% of the total weight. Care must be taken when distributing loads. Please see the Technical Handbook for permissible axle loads, the loadings and weights stated are maximums and must not be exceeded under any circumstances.
